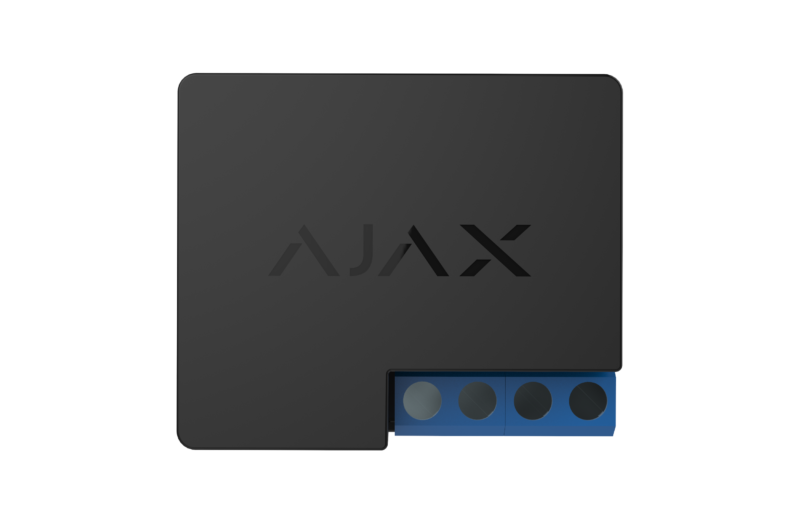

Ajax WallSwitch

Original price was: R919.00.Current price is: R827.00. inc. VAT

Availability: In Stock

Earn up to 166 points.
Quantiy:
- +
Back to products

The Ajax WallSwitch a wireless power on and off relay for electrical appliances with the capacity up to 3 kW.

EAN: 856963007194 SKU: 197649-13-BL1 Categories: , Tag:

Delivery info

We deliver free of charge to our customers in SA. Delivery is generally within 2-5 working days, depending on your location.

Stock availability

If you can add an item to your shopping cart, we have it in stock on OUR shelves

Returns Policy

Not the right item? Amatron has a return policy of 14 days from the delivery date. Please note, returned products with damaged packaging cannot be swapped or refunded.

Warranty

The warranty for Ajax devices is valid for two years after the purchase date and does not apply to the supplied battery.

The Byrna HD launcher has a 1-year warranty. Using third-party projectiles or CO2 canisters with your Byrna HD will void your warranty.

Similar Products

Ajax Relay - Black
-19%
Purchase & earn 149 points!Add to basket

Ajax Relay – Black

Original price was: R919.00.Current price is: R745.00. inc. VAT
Rated 0 out of 5
( 0 reviews )
Ajax Socket - White
-8%
Purchase & earn 296 points!Read more

Ajax Socket – White

Original price was: R1,610.00.Current price is: R1,479.00. inc. VAT
Rated 0 out of 5
( 0 reviews )

Description

The Ajax WallSwitch is used to switch on/off irons, garage gates, water heaters and heat-insulated floors.

With one click in the mobile application, the device switches domestic appliances on and off.

Information on energy consumption is available in the mobile application.

Features

Operates in 110 V and 220 V mains. The meter shows the power consumption in real time. The relay switches off automatically during overcurrent, voltage surge and overheating.

Principle of operation

The device controls the electric power supply by means of relay, which closes and opens the power supply network.

Download User's Guide

Additional information

Weight N/A
Dimensions N/A
Color

Black
Classification

Radio channel relay unit
Device type

Wireless
Installation method

Into wall plate
Compatiblity

Operates only with Hub and Hub Plus
Actuating element

Relay
Voltage protection

For 230 V mains: max — 264 В, min — 161 В
For 110 V mains: max — 126 В, min — 77 В
Relay service life

200,000 switch-ons
Maximum load current

13 A
Maximum current protection

Yes (13 A)
Maximum temperature protection

>65°C in the wall plate
Permissible power

Resistive load at 230 V — up to 3 kW
Resistive load at 110 V — up to 1.5 kW
Electric power meter function

Available
Energy consumption parameter check

Current, voltage, power consumption
Alarm signal delivery time

0.15 s
Power supply

110−230 V±10% 50/60 Hz
Jeweller radio technology

Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Detector scanning period — 12−300 s
Operating temperature range

0°С to +64°С
Permissible humidity

Up to 75%
Anti-sabotage

Protection against fraud
Jamming detection
Protection class of body

IP20
Remote setting and testing

+
Dimensions

38Ñ…25Ñ…18 mm
Weight

30 g
Certification

CE
Warranty

Replacement and repair within 24 months of the date of sale.
Complete set

WallSwitch
Installation set
User’s guide
