Description

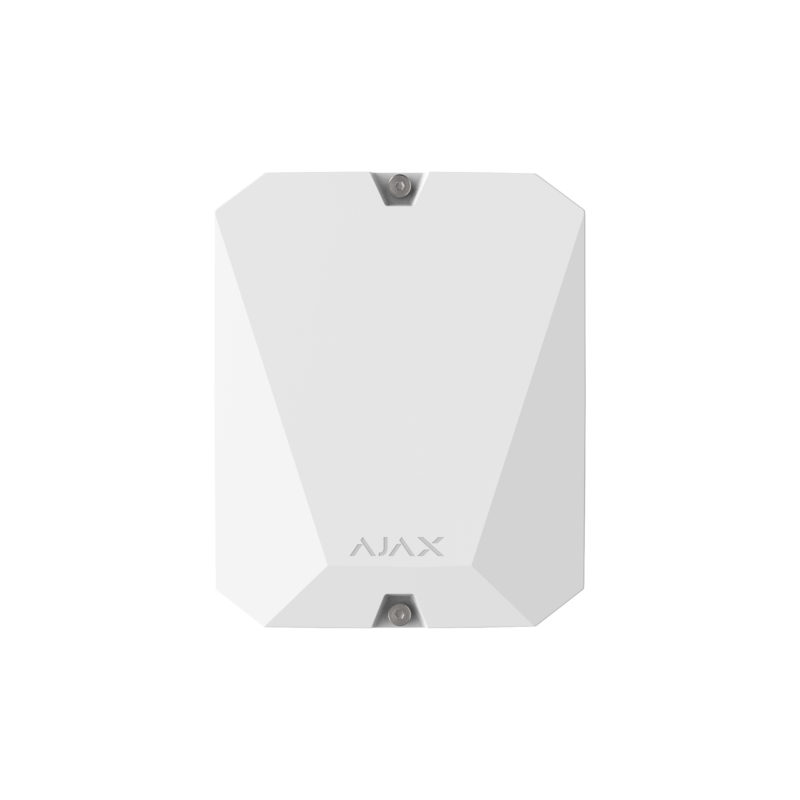

The MultiTransmitter has 18 wired zones.

Compatible with the Ajax Hub, Hub Plus, Hub 2 and Hub 2 Plus.

Communicates with a hub via an encrypted Jeweller radio protocol.

Features

Each wired device/zone can be labelled on the App. Therefore, push notifications can inform you when and where the alarm has been triggered.

The wired detectors which are connected to the MultiTransmitter zones benefit from Ajax features. This includes, entry and exit delays, “always active”, siren activation and automation scenarios, all of which can be controlled by the user from the Ajax App.

There are five types of alarms available: intrusion, fire, medical assistance, panic button and gas alarm.

Principle of operation

The MultiTransmitter has a power cable, but during electricity loss, a backup battery can provide power to the wired devices. It is also equipped with two tamper switches which alert the user when it is removed from its mount or when the lid is opened.

Please note: the MultiTransmitter does not come with the 12V backup battery.

Additional information

Weight N/A
Dimensions N/A
Color

Black, White

Number of alarm/tamper zones

18

Supported detector contact types

NO, NC (without R), EOL (NC with R), EOL (NO with R)

Resistance of the EOL resistor

1 kΩ to 7.5 kΩ

Alarm signals processing mode

Pulse or bistable

Main power supply

110–255 V, 50/60 Hz

Backup power

12 V DC

Supported battery type

Battery with 4 or 7 A⋅h capacity (not included)

Detector power supply

12 V DC, up to 1 A for all detector power supply outputs

Protection against dismantling

Tamper

Radio signal frequency band

868.0–868.6 MHz or 868.7–869.2 MHz, depending on the sales
region

Compatibility

Operates with Hub, Hub Plus, Hub 2, Hub 2 Plus and ReX

Maximum radio signal power

Up to 7.29 mW (25 mW limit)

Radio signal range

Up to 2,000 m in the line of sight

Operating temperature range

From -10°С to +40°С

Operating humidity

Up to 75%

Dimensions

196 х 238 х 100 mm

Weight

805 g

Warranty

Replacement and repair for a period of 24 months from the date of sale

Complete set

MultiTransmitter board
Body
Installation kit
Power cable
User Guide
