Description

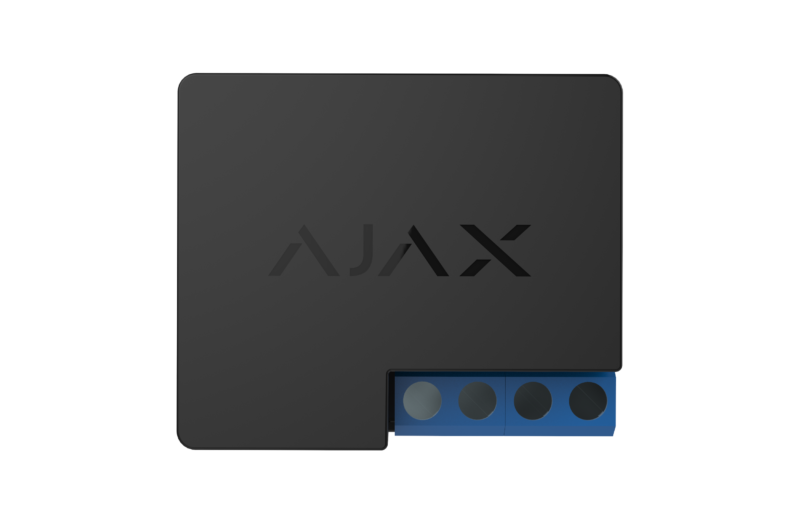

The Ajax WallSwitch is used to switch on/off irons, garage gates, water heaters and heat-insulated floors.

With one click in the mobile application, the device switches domestic appliances on and off.

Information on energy consumption is available in the mobile application.

Features

Operates in 110 V and 220 V mains. The meter shows the power consumption in real time. The relay switches off automatically during overcurrent, voltage surge and overheating.

Principle of operation

The device controls the electric power supply by means of relay, which closes and opens the power supply network.

Additional information

Weight N/A
Dimensions N/A
Color

Black

Classification

Radio channel relay unit

Device type

Wireless

Installation method

Into wall plate

Compatiblity

Operates only with Hub and Hub Plus

Actuating element

Relay

Voltage protection

For 230 V mains: max — 264 В, min — 161 В
For 110 V mains: max — 126 В, min — 77 В

Relay service life

200,000 switch-ons

Maximum load current

13 A

Maximum current protection

Yes (13 A)

Maximum temperature protection

>65°C in the wall plate

Permissible power

Resistive load at 230 V — up to 3 kW
Resistive load at 110 V — up to 1.5 kW

Electric power meter function

Available

Energy consumption parameter check

Current, voltage, power consumption

Alarm signal delivery time

0.15 s

Power supply

110−230 V±10% 50/60 Hz

Jeweller radio technology

Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Detector scanning period — 12−300 s

Operating temperature range

0°С to +64°С

Permissible humidity

Up to 75%

Anti-sabotage

Protection against fraud
Jamming detection

Protection class of body

IP20

Remote setting and testing

+

Dimensions

38х25х18 mm

Weight

30 g

Certification

CE

Warranty

Replacement and repair within 24 months of the date of sale.

Complete set

WallSwitch
Installation set
User’s guide
